CAN Convertor RPM Digital

CAN Convertor RPM Digital 5V

Rating: Not Rated Yet
ManufacturerVd Veer Engineering
Availability:in stock 23 item(s)
Product Code:CAN-RPM-DIGITAL-5V
150,00 €
Sales price without tax 150,00 €
CANBUS Convertor to Digital 5V RPM signal.
Digital Clusters, Golf Mk4, Audi 8N, Audi 8L etc.
Convertor Type

Description

CANBUS Convertor to analog RPM signal

For ECU's without RPM output this will convert the CAN bus signal to a 5v RPM signal for older cluster.
All VAG CAN ECU's

Golf Mk3 Cluster both 4 and 6 cylinder

Inputs:
- 12volt
- Ground
- CANBUS
- VSS 12v Speed signal

Outputs:
- Digital 5v RPM Signal
- Digital 12v Speed Signal

Needle Sweep on start
WiFi for data view settings and firmware updates
CANBUS output posibilities, VSS Speed convertor to CAN ABS Speed, CAN Messages simulation

CANBUS ECU -> RPM Output
CANBUS ABS or DSG -> VSS Speed Output
VSS Speed sensor -> CANBUS ABS Output

Works with digital cluster like in the VW Golf Mk3, Corrado, Passat B3 and more.



can convertor rpm cluster rpm output

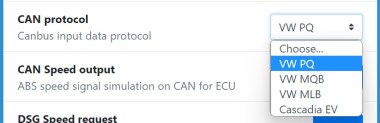

can convertor rpm can protocol

can convertor rpm settings





Prices without 21% VAT (Europa only), create a account or select country in shopping cart to see final price.
